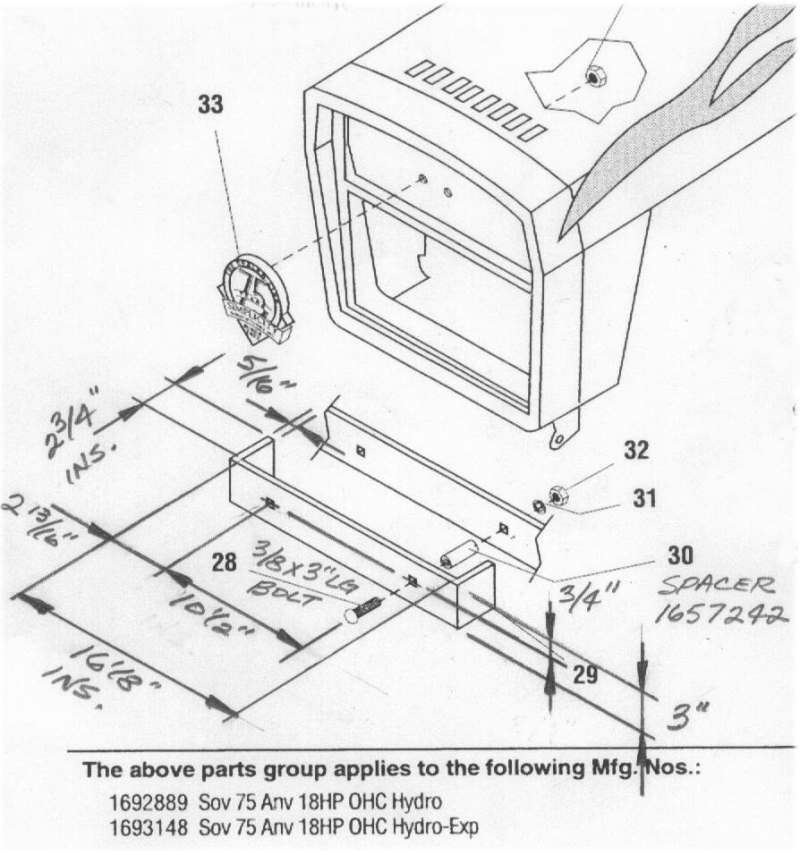

 Bill Crusan sent in this line drawing with dimensions for a Sovereign front bumper, like the one on a 75th Anniversary Edition.



Click each picture for a closer view.

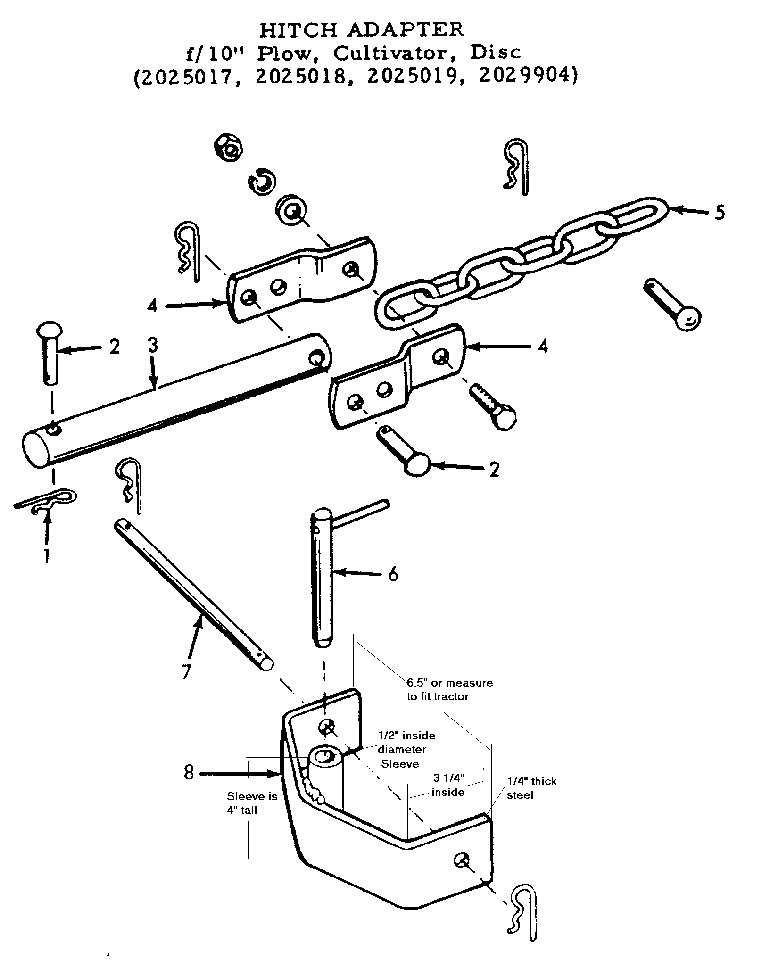

Several folks have expressed an interest in the Sleeve Hitch Adapter that is necessary for attaching implements such as plows and harrows.  This part is no longer available from Simplicity.  Tim Johnson has provided a dimensional parts drawing for those who would like to fabricate an adapter.  Click the small picture below for a full-screen view, then print it for reference.

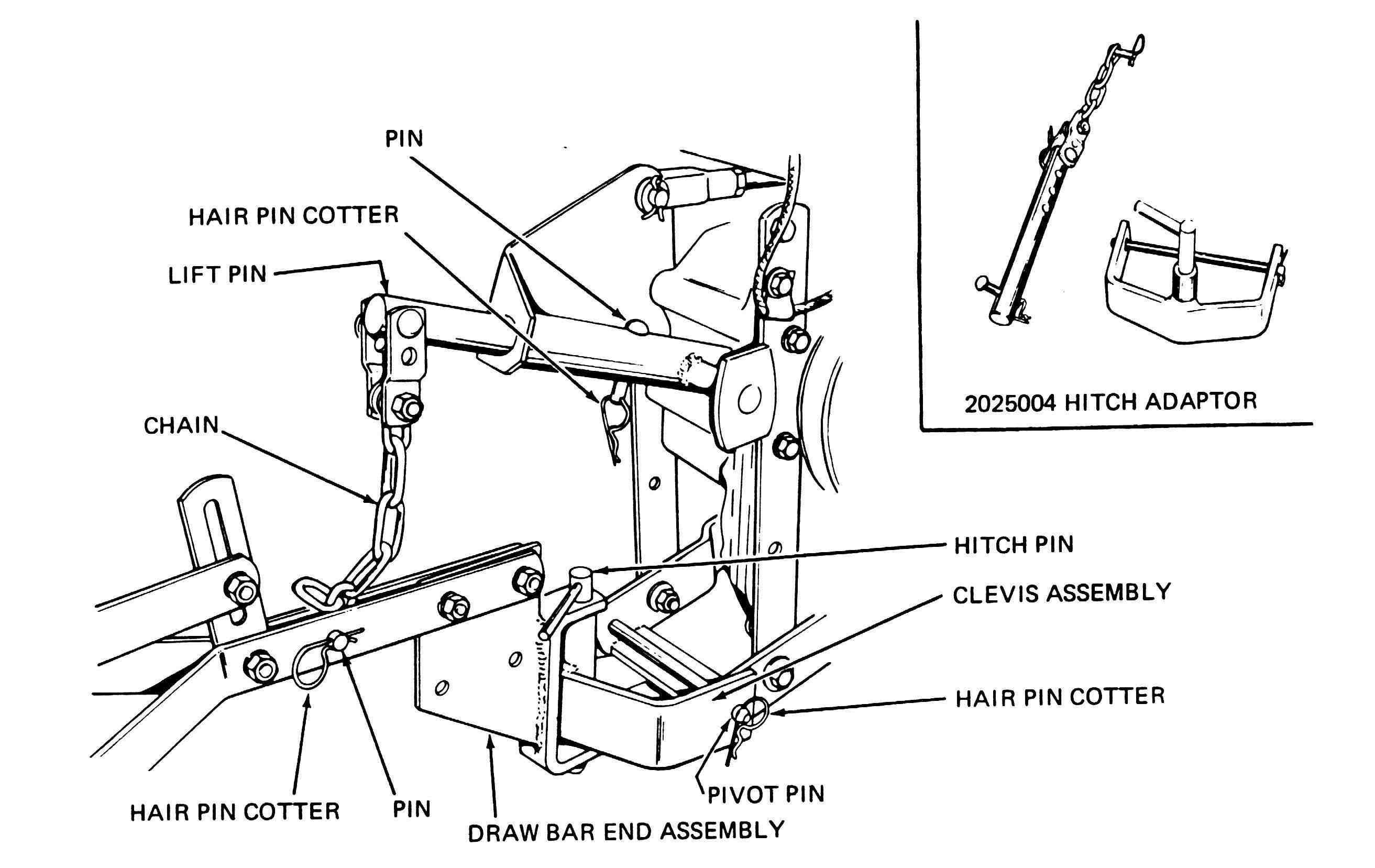

Here's an even larger drawing that shows how it is connected (also provided by Tim Johnson).  Click the small picture for a much larger view. Note that it's probably too big to print!

Others have expressed interest in fabricating a grader blade.  Tim Johnson also provided a drawing of it. Click the small picture below for a full-screen view, then print it for reference.
